GS2 Laser Grid Sensor Array
- Red Laser Grid
- Identifies Distance, Direction, Motion, & Temperature Fluctuations
- Establishes Baseline Measurements
- Monitor Environmental Changes
- Multiple Sensors
- Clear Displays
- Event Counter Tracks Unique Occurrences
- Aids in 3D Modeling with Dimensions, Shape, and Speed
- Audible Alerts
- Tripod Compatible (not included)
- Rechargeable Battery
- USB Charger
Map a room and measure changes with laser precision.
The next evolution of our first major product, the GS1 Laser Grid, is here and it’s packed with benefits. The GS2 now combines our original laser grid projection system with an array of multiple precision sensors.
This empowers you to shed light on more information about an entity than ever before. An expansive, red-laser grid provides data relating to speed, direction, dimensions, and even temperature!
Best of all, the GS2 is built and designed right here at GhostStop! Our veteran investigators have a passion building thorough, quality detection devices for any ghost hunt — even in the dark.
- Projects a red, grid-pattern laser to identify visual disturbances.
- Detects environmental changes within the laser-mapped area using multiple sensors.
- Perceives motion, distance, direction, and temperature fluctuations.
- Conducts baseline readings to establish a foundation for your investigation.
- Indicates readings on multiple displays for superior clarity.
- Finetune your targeting with a sensitivity slider control switch.
- Identifies the number of occurrences and characteristics with an event counter.
- Establishes dimensions, shape, and speed for aid in 3D modeling.
- Alerts you to changes with audible sounds — or not, with on/off speaker switch.
- Secures to common tripods for easy directional placement. Tripod not included.
- Keeps you in the field for longer with a rechargeable battery that boasts 4x the life!
- Get back into action sooner with a USB-compatible charger.
Imagine being able to map out everything you wanted to know about an anomaly. Consider how strong your video evidence would be if you could determine every characteristic of a ghost beyond a visual anomaly.
Well now you can! The GS2 laser grid system provides the direction, distance, temperature, shape, and size of a potential presence, and even supports 3D modeling.
We combined our original laser grid projector with an array of over 65 sensor points. This superior mapping system reveals more information than ever before!
Many sensors in one device.
Detect multiple characteristics of an entity.
- Shape and Size
- Baseline Readings
- Event Counter Detail
An upgraded laser motion detector for advanced ghost hunts
We’ve created a new laser grid projector with greater sharpness and power — just for the GS2! This laser projects a visible pattern over the target area of a room, making it easy to identify anomalies that enter the space.
The sensors monitor the surface within the grid and log the characteristics of each “Pixel” in that area. Anything that passes in front of the laser with significant enough mass will cause a visual disturbance in the pattern and trigger visual displays on the device.
With enough mass, the anomaly will reflect back a different pattern, bowing the lines along the surface. All of this information combined with the collected sensor data will be an aid to someone with 3D modeling experience to draw a model of the entity or object.
Why red light?
As with most of our products, the GS2 uses red light to support optimal night vision preservation in low-light environments.

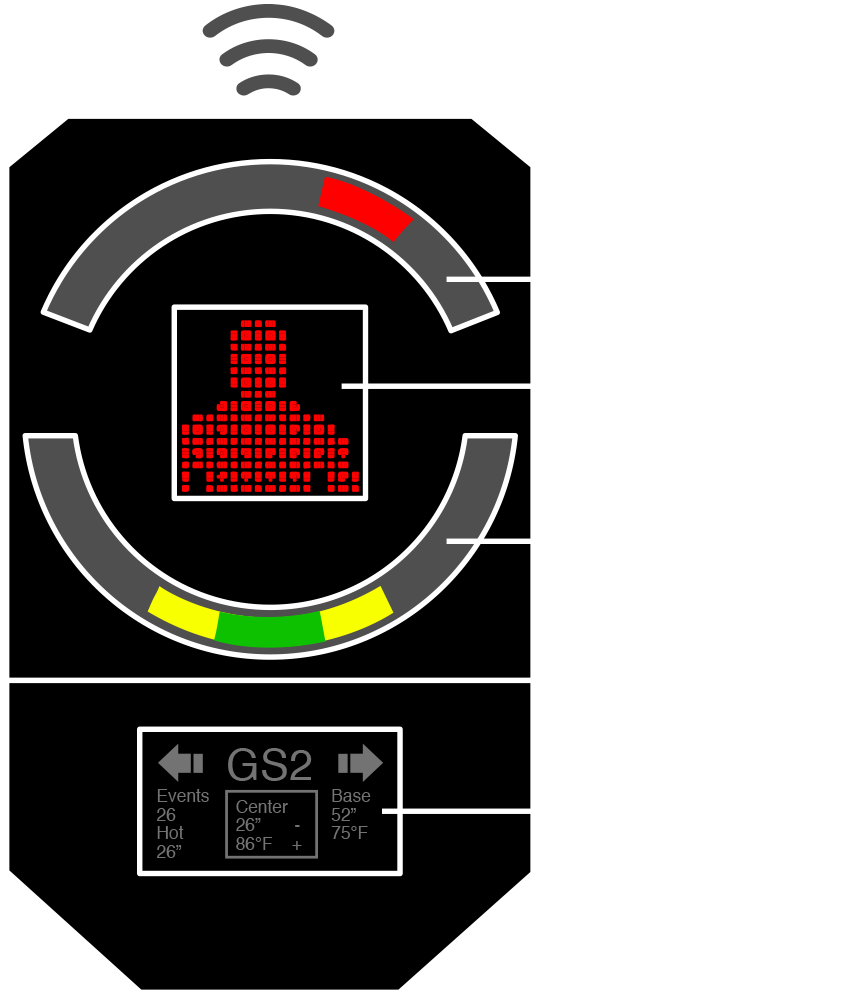

4 Lighted Displays & Sound Alerts
The GS2 features four helpful displays for quickly and easily visualizing what's going on in the space. For aid in alerting us when we're not within visual range, a sound alert triggers to indicate movement and alert us to a presence.
1. The Direction Arc
The Direction Arc defines direction of motion. Additionally, it indicates temperature deviation using red and blue indicators for “hot” and “cold,” respectively.
2. Shape Display
The Shape Display indicates the form of a potential anomaly over a 64-point laser grid.
3. Distance Arc
The Distance Arc reveals the distance of an object in the center of the grid. Distance changes are indicated by color and size, while a sound alert identifies the range.

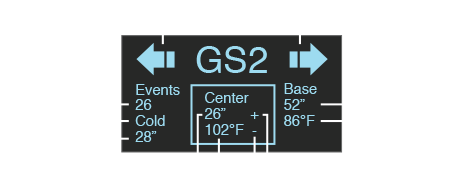

4. Detail Monitor
The Detail Monitor houses additional indicators for greater clarity:
- Arrows to indicate direction of movement
- “Base” sets baseline distance and temperature
- “Center” identifies centerpoint distance and temperature
- Event counter tracks anomalies and displays related distance and temperature
The Detail Monitor can be turned on and off, as you prefer. Use the slider switch to turn it on for detailed monitoring, or turn it off for faster performance from the other displays.

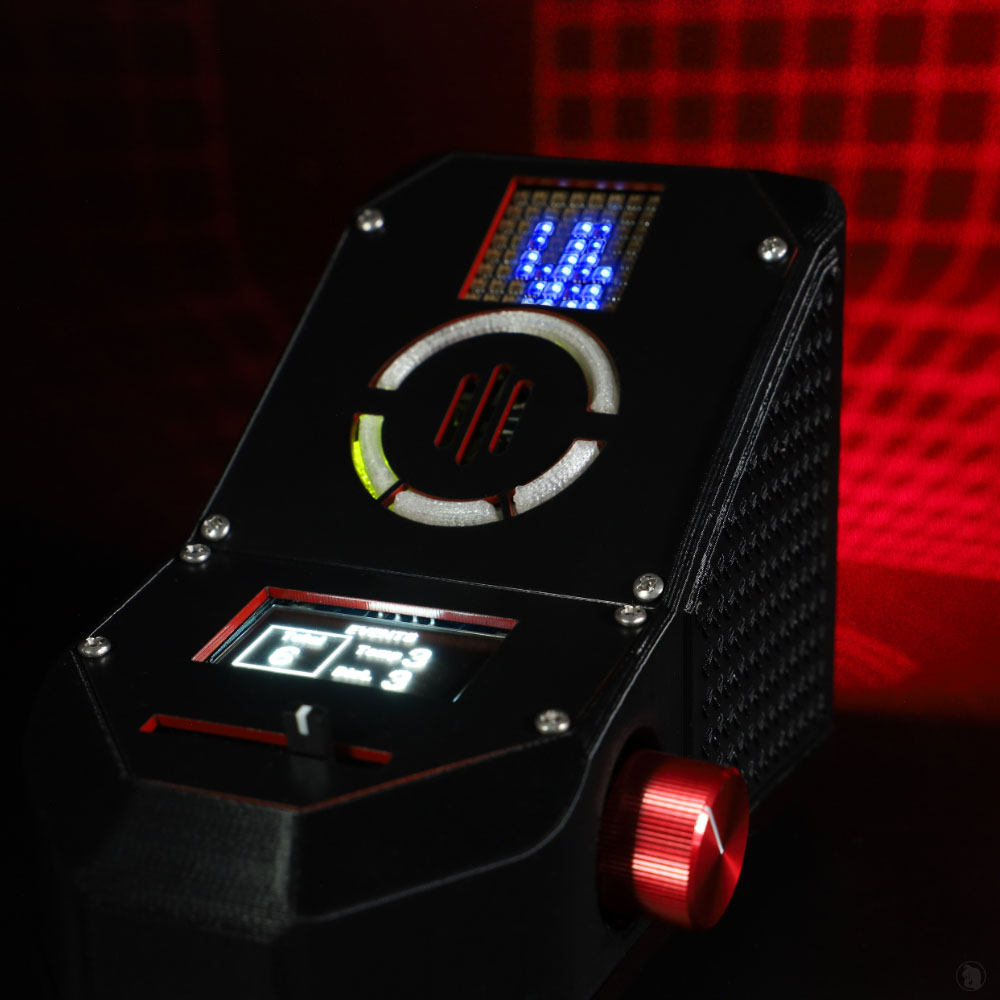

The GS2 projects a laser grid for motion, distance, and direction.
Our combination of thermal and distance sensors provide far more precise manner of detecting motion than your typical motion sensor. While most motion sensors simply alert to a presence of motion, the GS2 senses changes in the entire mapped area for determining where the motion occurs, what distance it is and what direction it is moving.
It also detects temperature and provides shape mapping.
Now we can detect temperature changes within the mapped area and tell what direction it is moving. Utilizing a 64-point thermal sensor the GS2 detects hot and cold spots which it displays in multiple ways to provide location, temperature deviation (hotter or colder) then compares this all with baseline readings to alert us to change. Because our sensor array is looking at the entire surface area we're also able to display the size and shape of the anomaly on the center LED display. This shape is presented on the Shape Display in red or blue to indicate if it's hotter or colder than baseline.
Your data is supported by solid baseline readings.
Gathering baselines are important to proper investigation documentation. The first function upon turning on the GS2 is an initial period for baseline readings. It scans and collects sample readings from each Pixel within the laser grid including surface temperature and distance. Characteristics from this initial baseline scan is immediately stored in memory for comparison later which is where all of the calculations for future changes is gathered. A summary of the baseline readings is displayed on the detail screen.
Keep data organized with Event Counter and related details.
Wouldn't you like to know how many times a presence entered the room while you're gone? The GS2 provides this and more. This 'Event Counter' determines and displays a total count of occurrences since it was turned on. This is especially helpful for noting if something happened in a room while you were not there. Simply take note of the number before leaving. If that number is higher when you return, something entered the space while you were away. The Event display also details the last Event with distance and temperature deviation, "Hot" or "Cold".
GhostStop Manufactures the GS2 with Care by Hand
Parts of the GS2 are 3D-printed right here at GhostStop. Each one is made with great care by hand.
As such, each one may have unique elements in the texture that could appear to be small defects. These unique elements do not affect the function of the product.
Though we do our best to keep them as uniform as possible, each one will be unique in some small way since they are each printed and hand-built for quality. Thank you for your understanding!
How to Use the GS2 Laser Grid for Projection Mapping
Just place the laser grid in an area projecting onto a solid surface. You can set the size of the grid based on the distance to the wall or surface.
For best results, set it next to a video camera for documentation. Once you turn it on, it will allow you time to step away out of the projected area. Ensure the device is solid and no moving objects are within the field of view.
Once this period is over it will conduct a quick baseline scan of the area for later use. It will then begin alerting to changes in the environment using the 4 displays and sound alerts.
Stay Alert while Scanning
While scanning, watch for any changes on the displays or sound alerts. If in use, the Detail Monitor will provide immediate detailed readings.
This unit includes an on/off toggle switch for power and another for independent use of the monitor. The unit is rechargeable via a standard USB cable and has a metal tripod mount on the bottom for setting on any standard tripod.
To Reset the Baseline
To reset the baseline, simply turn the device off and back on again. You can choose to use the Detail Monitor or not at any time based on your preferences using the slide switch next to it.
When Storing Your GS2 Ghost Hunting Grid

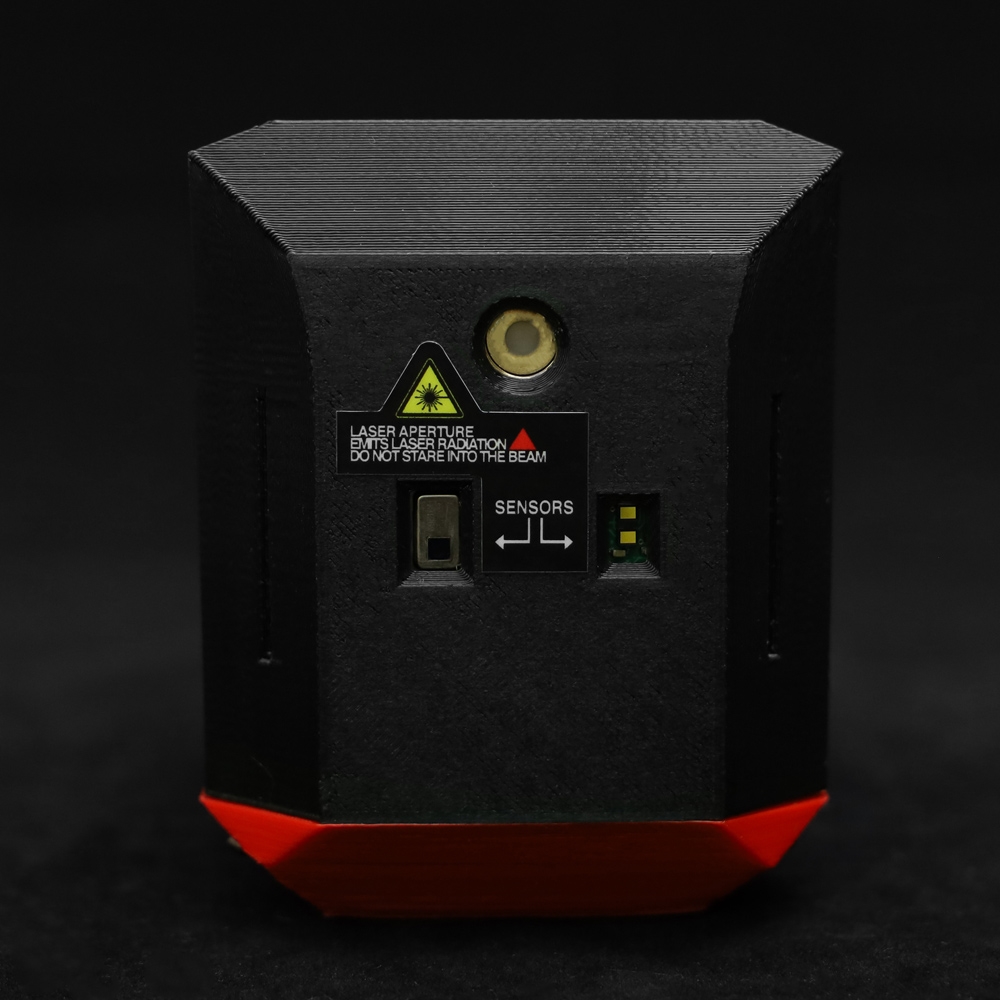

When storing, make sure to attach the included sensor protection cap. This snaps on and off easily to protect the precision sensors when not in use.
Boost Your Ghost Hunts with a GS2 Laser Grid from GhostStop
A laser grid system boosts your paranormal investigations by supporting your evidence, and by capturing much more. To find out more about how the GS2 holds up in the field, reach out to our team today.
MADE IN THE USA from domestic and imported material.
This product is made right here at GhostStop.
PATENT PENDING. This product is intended for research purposes only.
Sorry, we are unable to ship this item outside of the United States at this time.
*NOTE: Parts of the GS2 are 3D printed right here at GhostStop. Each one is made with great care by hand. As such, each one may have unique elements in the texture that could appear to be small defects. These unique elements do not affect the function of the product. Though we do our best to keep them as uniform as possible, each one will be unique in some small way since they are each printed and hand-built for quality. Thanks for your understanding in that.
- Product Dimensions: 3"W x 5.25"L x 3.5"H
- Power Supply: Rechargeable internal battery
- Built-in Battery Life: ~1 hour on a full charge
- We highly recommend plugging it into a USB batter pack or outlet power for extended use
- Plug-In Power: Add a USB Power Pack or plug into outlet power for unlimited use
- Laser Dimensions: Adjust the spread however you want by setting your own distance from the subject with a 1'/1.5' ratio
- This means roughly 1' distance from the subject results in ~1.5' grid width, 5' distance results in ~7.5' grid width and 10' distance results in ~15' grid width
- Temperature Alert: requires a 3°F change in temperature for alerts
- Sensor Range: 2"min - 78"max
- See product label for WARNINGS. This product is intended for research purposes only as a projector in a large area indoors and is not intended to be used as a pointing device. This is not a toy. Do not stare at the laser beam. Avoid eye exposure. Never aim lasers into the air or at aircraft. Class III laser product.
ContentsGS2 Laser Grid System
USB charging cable
Sensor protection cap
DirectionsJust place the laser grid in an area projecting onto a solid surface. You can set the size of the grid based on the distance to the wall or surface. For best results, set it next to a video camera for documentation. Once you turn it on, it will allow you time to step away out of the projected area. Ensure the device is solid and no moving objects are within the field of view. Once this period is over it will conduct a quick baseline scan of the area for later use. It will then begin alerting to changes in the environment using the 4 displays and sound alerts. To reset the baseline simply turn the device off and back on again. You can choose to use the Detail Monitor or not at any time based on your preferences using the slide switch next to it. While scanning, watch for any changes on the displays or sound alerts. If in use, the Detail Monitor will provide immediate detailed readings.
This unit includes an on/off toggle switch for power and another for independent use of the monitor. The unit is rechargeable via a standard USB cable and has a metal tripod mount on the bottom for setting on any standard tripod. When storing, make sure to attach the included sensor protection cap. This snaps on and off easily to protect the precision sensors when not in use.
New Updates (Late July 2021)
Speaker On/Off Switch
